UFP-30
- 1. Outline

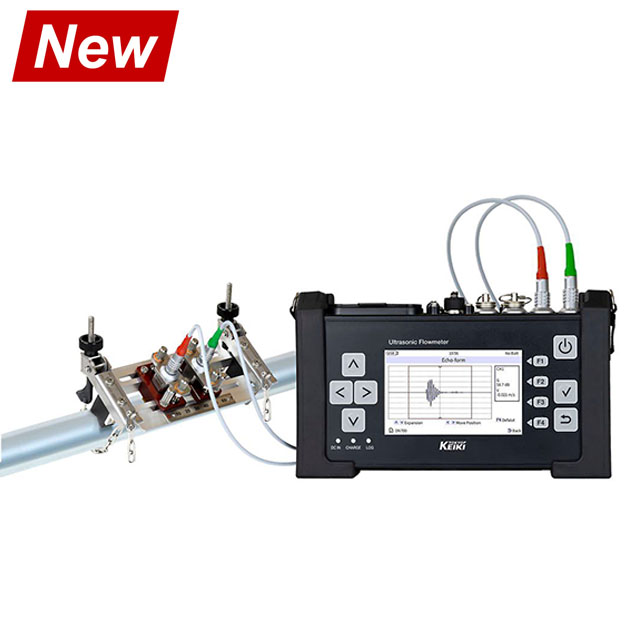

- 1) The time it takes to propagate ultrasonic pulses in a liquid varies according to flow velocity. This principle is utilized by ultrasonic flowmeters which provide signal output proportional to the flow rate. The UW-30P portable flowmeter can measure flow by simply positioning the transducers on the outside of pipes.
- 2) The UW-30P flowmeter supersedes our model UFP-20 or UFP-10 and offers a more compact design with additional functions such as pipe thickness measurement and liquid ultrasonic velocity measurement. The UW-30Pis a high-performance flowmeter which is simple to use. The UW-30P incorporates an onboard DSP which carries out such functions as flow calculation and data processing in metric or inch units. The UW-30P can be applied to pipe diameters from 13 ~ 5000 mm and is ideal for use with liquids such as clean water and wastewater. Three power sources (Li-Ion battery, AC, DC supply) allow flexibility to match conditions of the site and optional equipment such as optional transducers, extension cable and temperature input for heatmeter function enhance the range of applications.
